A reversible reaction involving hydrated copper(II) sulfate and its anhydrous form

Class practical

Students remove the water of crystallization from hydrated copper(II) sulfate by heating. Condensing the vapour produced in a second test-tube collects the water. The white anhydrous copper(II) sulfate is then rehydrated and the blue colour returns.

Lesson organisation


This experiment can be carried out in pairs by students. It should take no more than 30 - 40 minutes.

Chemicals

Copper(II) sulfate(VI)-5-water (powdered), (HARMFUL, DANGEROUS FOR THE ENVIRONMENT), about 5 g

Refer to Health & Safety and Technical notes section below for additional information.

Apparatus

Each group will require:

Eye protection

Test-tubes, 2

Delivery tube (right-angled)

Beaker, 250 cm3

Bunsen burner

Clamp and stand

Health & Safety and Technical notes


Read our standard health & safety guidance

Wear eye protection.

Copper(II) sulfate(VI)-5-water, CuSO4.5H2O(s), (HARMFUL, DANGEROUS FOR THE ENVIRONMENT) - see CLEAPSS Hazcard.

Procedure

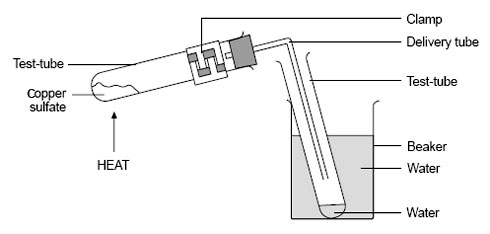

Apparatus set-up

a Set up the apparatus as shown, placing about 5 g of powdered hydrated copper(II) sulfate in the test-tube. Make sure that the tube is clamped near the bung as shown.

b Heat the blue copper(II) sulfate until it has turned white. Move the flame along the length of the test-tube from time-to-time (avoiding the clamp) to prevent water condensing on the cooler regions and then running down on to the hot solid, possibly cracking the test-tube.

c Act quickly to prevent suck-back if the level of water collecting in the test-tube reaches the end of the delivery tube. Lift the clamp stand so that the delivery tube does not reach into the water in the test-tube.

d Allow the anhydrous copper(II) sulfate to cool back to room temperature.

e Holding the test-tube containing anhydrous copper(II) sulfate in one hand, pour the
collected water very slowly on to the white powder. What observations can you make?

f Record any observations made during the heating process and when the water was poured back onto the anhydrous copper(II) sulfate.

Teaching notes


Ensure that the students have clamped the test-tube at the end nearest the bung before they start the experiment, otherwise they will be heating the clamp as well as the test-tube.

Warn about and watch for ‘suck-back’. Demonstrate how to lift the entire clamp stand and apparatus.

The reaction involved is:

CuSO4.5H2O(s)(pale blue solid) ⇌ CuSO4(s)("dirty" white solid) + 5H2O(l)

Students should observe the colour change from pale blue to white and the change back to blue when water is added. The colour change on adding water to anhydrous copper(II) sulfate has been used as a test for the presence of water in a liquid.

The more observant should notice that the addition of water to anhydrous copper(II) sulfate is exothermic, as the tube becomes noticeably hot if the water is added very slowly. They should therefore conclude that the same quantity of energy is absorbed when the endothermic thermal decomposition takes place.

Perhaps in subsequent class discussion students could be asked why anhydrous copper(II) sulfate would not be a feasible fuel for the future.

More able and older students might be asked to calculate the enthalpy change occurring during this process. They will need to find out from a Data Book the standard enthalpies of formation for anhydrous and hydrated copper(II) sulfate, as well as that for water.

Health & Safety checked August 2008
